#2 - Initial Setup of FortiAnalyzer in EVE-NG / PNETLab (Management Interface + Internet Access)

In this guide, we will walk through the initial configuration of a FortiAnalyzer appliance running in a lab environment using EVE-NG or PNETLab. The goal is to establish management access, enable internet connectivity, and prepare the device for FortiGuard services.

Lab Environment

• Platform: EVE-NG / PNETLab
• Image: FortiAnalyzer v7.0.3 (build 0254)
• CPU: 4 vCPU
• RAM: 8192 MB

Step 1 – First CLI Access

Access the FortiAnalyzer via the console using:

• Username: admin
• Password: (leave blank)

On the first login, you will be prompted to set a new password. This is mandatory before proceeding.

Step 2 – Configure the Management Interface

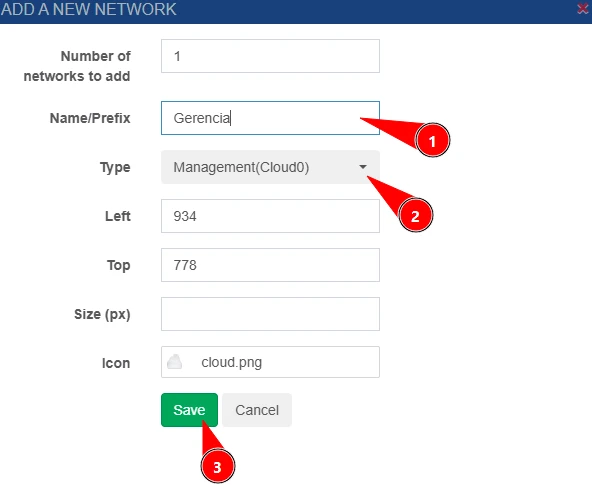

To simplify access to the device, we connect one interface (in this example, port4) to a Cloud (bridge) network in EVE-NG/PNETLab. This allows direct access from your local machine without needing an additional VM.

Configuration

Accessing the device’s CLI via terminal:

config system interface
    edit port4
        set ip 192.168.0.X/24
        set allowaccess http https ssh ping
        set alias "GERENCIA"
    next
end

• Replace 192.168.0.X with an available IP in your local network.
• The allowaccess parameter enables management protocols.
• The alias is optional but helps identify the interface.

Connectivity Test

execute ping 192.168.0.1

If configured correctly, the device should be able to reach your local gateway.

Step 3 – Configure Default Gateway

To allow external connectivity (internet access), configure a default route:

config system route
    edit 1
        set gateway 192.168.0.1
        set dst 0.0.0.0/0
        set device "port4"
    next
end

Test External Connectivity

execute ping 8.8.8.8

A successful response confirms basic internet connectivity.

Step 4 – Configure DNS

DNS configuration is required for name resolution and proper communication with FortiGuard services.

config system dns
    set primary 1.1.1.1
    set secondary 1.0.0.1
end

Test Name Resolution

execute ping google.com

If this works, DNS is correctly configured.

Step 5 – Access via Web Interface and Licensing

Now you can access the FortiAnalyzer GUI from your browser:

https://192.168.0.X

Log in using your FortiCloud account credentials:

👉 https://www.forticloud.com

Once authenticated, your lab device will automatically receive a trial license, allowing you to explore features for learning and testing purposes.

Final Notes

• Ensure your EVE-NG/PNETLab cloud interface is properly bridged to your host network.
• Avoid IP conflicts with other devices on your LAN.
• If pings fail, verify your bridge configuration and gateway settings.

This setup provides a clean and efficient way to manage your FortiAnalyzer directly from your local machine without additional virtualization overhead.

***GERENCIA = Management
